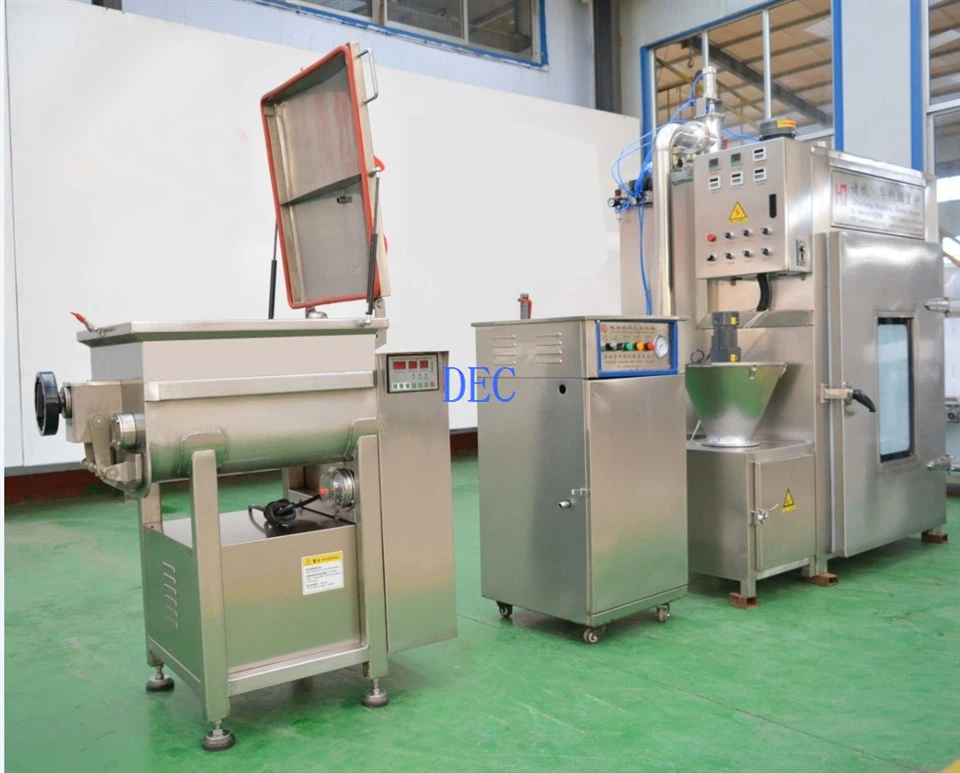

Lub Tshuab Nqus Tsev Cov Khoom Siv Tshuab Description

Qhov kom zoo dua ntawm lub tshuab nqus tsev tov khoom, lub tshuab nqus tsev sib xyaw yog tias nws tuaj yeem nthuav dav cov khoom noj sib xyaw, cov nqaij sib xyaw, thiab lwm yam los ntawm lub tshuab nqus tsev tsis zoo, tsis muaj npuas, nrog zoo elasticity, thiab ci xim. Thiab nws yog ib qho khoom siv zoo tshaj plaws rau kev txhim kho cov khoom zoo los ntawm kev ua kom muaj protein ntau los nag.

Qhov zoo ntawm lub tshuab nqus tsev sib xyaw:

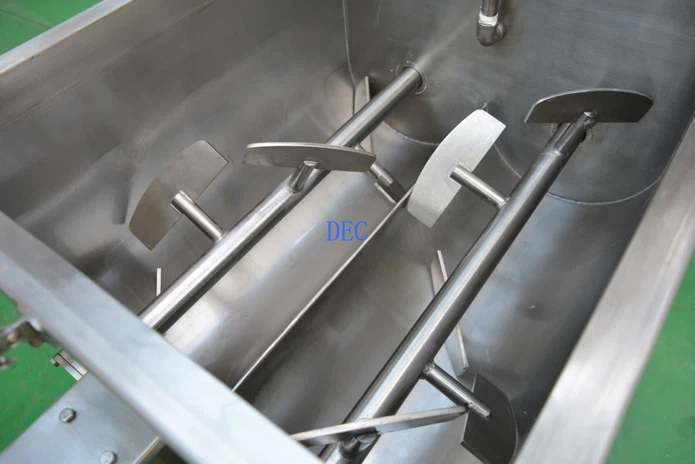

1. Lub tshuab nqus tsev tov khoom txais yuav ib tus qauv ntawm ob zaj thiab muab kauv hniav. Cov khoom txav mus rau hauv ib lub voj voog thaum flipping hauv lub hopper, ua rau kev sib xyaw ntawm ntau yam ntaub ntawv zoo ib yam tsis muaj cov fab tuag.

2. Lub tshuab nqus tsev tov khoom yog nyob rau hauv lub tshuab nqus tsev, qhov filling yog stirred tusyees, tag nrho expands, muaj zoo elasticity, ci xim, thiab maximally cais proteins.

3. Lub sealing ntawm lub hau sab saum toj thiab tawm qhov rooj ntawm lub tshuab nqus tsev tov khoom yog ua los ntawm silicone strips, nrog peb txheej ntawm sealing tiv thaiv kom ntev lub neej kev pab cuam ntawm cov khoom siv thiab ua kom huv si yooj yim dua.

4. Lub tshuab nqus tsev tov khoom yog ua los ntawm cov zaub mov qib stainless hlau, uas yooj yim los ntxuav thiab zoo nkauj. Ua raws li cov qauv kev nyiam huv hauv tebchaws.

5. Lub tshuab nqus tsev sib xyaw muaj peev xwm ntawm 20L txog 3000L, thiab cov neeg siv khoom tuaj yeem xaiv tau raws li cov khoom sib txawv.

6. Lub tshuab nqus tsev sib xyaw yog nruab nrog lub tshuab tso tawm tsis siv neeg los txo kev siv zog.

Nqus Nqaij Nqus Tshuab Nqe lus piav qhia

yam	Qauv	Specification
1	BX-20L	Ntim: 20L Lub zog: 0.62 (Kw) Qhov hluav taws xob: 380/50 (V; HZ) Kev sib tov ceev: 40 (rpm) Txoj kev tig: phau ntawv Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08Mpa Loj: 735 * 330 * 800mm Khoom siv: SUS304 stainless hlau
2	ZBX-30L	Ntim: 30L Peev xwm: 15 (kg / zaug) Lub zog: 0.62 (Kw) Qhov hluav taws xob: 380/50 (V; HZ) Kev sib tov ceev: 40 (rpm) Txoj kev tig: phau ntawv Lub tshuab nqus tsev kawm ntawv: -0 04-0.08Mpa Loj: 740 * 365 * 840mm Khoom siv: SUS304 stainless hlau
3	ZBX-50L	Ntim: 50 (L) Peev xwm: 20-30(kg/time) Lub Zog: 1.5Kw Voltage: 380V 50HZ (V; HZ) Kev sib tov ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1060 * 600 * 1220 (mm) Khoom siv: SUS304 stainless hlau
4	ZBX-100L	Ntim: 100 (L) Peev xwm: 40-60(kg/time) Lub Zog: 1.5Kw Voltage: 380V 50HZ (V; HZ) Kev sib tov ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1100 * 675 * 1120 (mm) Khoom siv: SUS304 stainless hlau
5	ZBX-150L	Ntim: 150 (L) muaj peev xwm: 70-80(kg/time) Lub zog: 2.2Kw Voltage: 380V 50HZ (V; HZ) Kev sib xyaw cov hniav ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1400 * 720 * 1260 (mm) Khoom siv: SUS304 stainless hlau
6	ZBX-200L	Ntim: 200 (L) muaj peev xwm: 80-100(kg/time) Lub zog: 3.{1}}(Kw) Voltage: 380V 50HZ (V; HZ) Kev sib xyaw cov hniav ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1400 * 750 * 1400mm Khoom siv: SUS304 stainless hlau
7	ZBX-300L	Ntim: 300 (L) muaj peev xwm: 120-150(kg/time) Lub Zog: 4.2Kw Voltage: 380V 50HZ (V; HZ) Kev sib xyaw cov hniav ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1450 * 800 * 1400mm Khoom siv: SUS304 stainless hlau
8	ZBX-500L	Ntim: 500 (L) Muaj peev xwm: 250 (kg / zaug) Lub zog: 5.15Kw Voltage: 380V 50HZ (V; HZ) Kev sib xyaw cov hniav ceev: 24 (rpm) Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 1450 * 870 * 1500mm Khoom siv: SUS304 stainless hlau
9	ZBX-1200L	ntim: 1200L muaj peev xwm: 500-600(kg/time) ceev sib tov cov hniav: 40 (r / min) Lub zog: 10.2kw Txoj kev tig: kab rov tav tig Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 2160 * 1500 * 2000 (mm) Khoom siv: SUS304 stainless hlau
10	ZBX-3000L	ntim: 3000L Peev xwm: 2200 (kg / teev) ceev sib tov cov hniav: 42 (r / min) Lub zog: 10.2kw Txoj kev tig: ntsug pem hauv ntej tawm Lub tshuab nqus tsev kawm ntawv: -0 04-0.08 (Mpa) Loj: 2500 * 2000 * 2800 (mm) Khoom siv: SUS304 stainless hlau
