Khoom Description
Cov nqaij qaib, nqaij qaib, thiab nyuj kev lag luam tau loj hlob sai nyob rau hauv xyoo tas los no, thiab nrog rau nws los txog qhov xav tau kom muaj txiaj ntsig zoo thiab txhim khu kev qha noj cov tshuab sib tsoo. Cov tshuab no ua lub luag haujlwm tseem ceeb hauv cov txheej txheem pub khoom noj los ntawm kev rhuav tshem cov khoom xyaw xws li nplej, pob kws, thiab taum pauv mus rau hauv cov khoom me me uas yooj yim rau tsiaj zom.
Pub sib tsoo tshuab tsis tsuas yog muab cov txiaj ntsig tseem ceeb rau cov neeg ua liaj ua teb thiab cov chaw tsim khoom noj, tab sis kuj rau cov tsiaj lawv tus kheej. Los ntawm kev rhuav tshem cov khoom xyaw rau hauv cov khoom me me, cov tshuab no txhim khu kev zom zaub mov, uas tuaj yeem ua rau tsiaj noj qab haus huv, kev loj hlob, thiab kev tsim khoom. Qhov no, nyob rau hauv lem, tuaj yeem ua rau muaj txiaj ntsig ntau ntxiv thiab kev ua liaj ua teb kom ruaj khov.
Hauv kev xaus, kev sib tsoo tshuab pub khoom noj yog ib qho tseem ceeb ntawm cov nqaij qaib, nqaij qaib, thiab nyuj kev lag luam, thiab lawv muaj ntau yam txiaj ntsig rau cov neeg ua liaj ua teb, cov chaw tsim khoom noj, thiab tsiaj txhu. Nrog kev nce qib hauv kev siv thev naus laus zis thiab kev tshawb fawb thiab kev txhim kho tsis tu ncua, peb tuaj yeem cia siab tias cov tshuab no txuas ntxiv muab cov kev daws teeb meem tseem ceeb rau cov kev xav tau loj hlob ntawm cov kev lag luam hauv xyoo tom ntej.
- Txais yuav cov khoom lag luam zoo SKF bearings rau lub neej ntev thiab kev ua haujlwm zoo.
- Dej poob sib tsoo chamber, kom tshem tawm cov kev ncig thiab nce cov zis.
- Hloov los ntawm kev sib tsoo ntxhib mus rau kev sib tsoo zoo los ntawm kev kho qhov clearance ntawm qhov screen thiab beater
- Impeller feeder tuaj yeem nruab nrog lub tshuab hloov pauv siab tshaj plaws thiab cov cuab yeej sib nqus rau kev noj zaub mov zoo thiab txhim khu kev qha.
- Siemens lossis Tuam Tshoj Wannan lub cev muaj zog hom.
Nqaij nyuj noj Grinder Daim ntawv tseem ceeb:
A Series Pub Rauj Zeb Sib Tsoo Tshuab:
|
Qauv specification |
AST-ZW 36A |
AST-ZW 40A |
|
Rotor txoj kab uas hla (mm) |
560 |
560 |
|
Pulverizing chav dav (mm) |
360 |
400 |
|
Spindle ceev (RPM) |
2980 |
2980 |
|
Rauj Linear ceev (RPM) |
87 |
87 |
|
Hammers kom muaj nuj nqis (PCS) |
48 |
56 |
|
Lub zog loj (kw) |
22 |
37 |
|
Ib txwm Cua Suction ntim (cub meters / feeb) |
25 |
|
|
Cov zis (t / h) |
1-3 |
3-5 |
B Series Rauj Mill Crusher:
|
Qauv |
AST-ZW 60B |
AST-ZW 80B |
AST-ZW 100B |
AST-ZW 120B |
||
|
Rotor txoj kab uas hla (mm) |
660 |
660 |
660 |
660 |
||
|
Spindle ceev (RPM) |
2980 |
2980 |
2980 |
2980 |
||
|
Linear ceev ntawm hammers (m / s) |
78 |
78 |
78 |
78 |
||
|
Pulverizing chav dav (mm) |
600 |
800 |
1000 |
1200 |
||
|
Hammers Qty (Pcs) |
96 |
120 |
160 |
192 |
||
|
Screen loj (mm) |
2 pcs (830 * 598) |
4 pcs (830 * 393) |
4 pcs (830 * 493) |
4pcs (830 * 593) |
||
|
Lub zog (kw) |
55/75 |
90/110 |
132 |
160 |
||
|
Huab cua Volume (M3/h) |
Rough crushing |
42/46 |
55/61 |
80 |
100 |
|
|
Zoo crushing |
55/60 |
72/78 |
100 |
130 |
||
|
Rough Crush peev xwm (t / h) |
9/12 |
14/16 |
18 |
20 |
||
|
Fine crush muaj peev xwm (t / h) |
2/3.5 |
4.5/6 |
8 |
10 |
||
C Series Rauj Mill Tshuab:
|
Qauv |
AST-ZW 30C |
AST-ZW 40C |
AST-ZW 50 C |
AST-ZW 60 C |
AST-ZW 80C |
AST-ZW 100C |
||
|
Rotor txoj kab uas hla (mm) |
1120 |
1120 |
1120 |
1120 |
1120 |
1120 |
||
|
Spindle ceev (rpm) |
1480 |
1480 |
1480 |
1480 |
1480 |
1480 |
||
|
Linear ceev ntawm hammers (m / s) |
86.5 |
86.5 |
86.5 |
86.5 |
86.5 |
86.5 |
||
|
Rauj Chamber dav (mm) |
300 |
400 |
500 |
610 |
810 |
1010 |
||
|
Screen loj (mm) |
2pcs (1400 * 298) |
2pcs (1400 * 398) |
2pcs (1400 * 498) |
4pcs (1400 * 298) |
4pcs (1400 * 398) |
4pcs (1400 * 498) |
||
|
Tus naj npawb ntawm cov rauj |
52 |
72 |
92 |
104 |
144 |
184 |
||
|
Lub zog (kw) |
55 |
75 |
90 |
110 |
132 |
160 |
185/200 |
220/250 |
|
Huab cua Volume (M3 / min) |
55 |
60 |
72 |
78 |
95 |
100 |
120/140 |
140/160 |

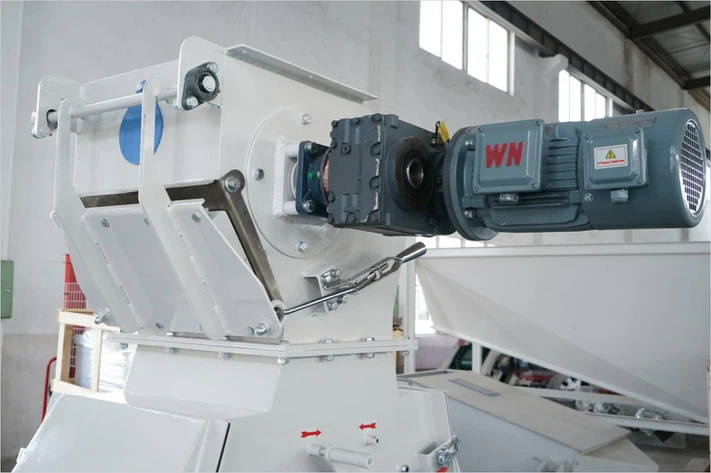

Pub Rauj Mill Impeller Feeder
