Cov nqaij qaib pub pellet crumbler tshuab txais lub hauv paus ntsiab lus ntawm qhov sib txawv ceev ntawm cov menyuam rau extrude thiab shear cov khoom tuaj, kom cov khoom loj granular tawg rau hauv cov ntaub ntawv me me.

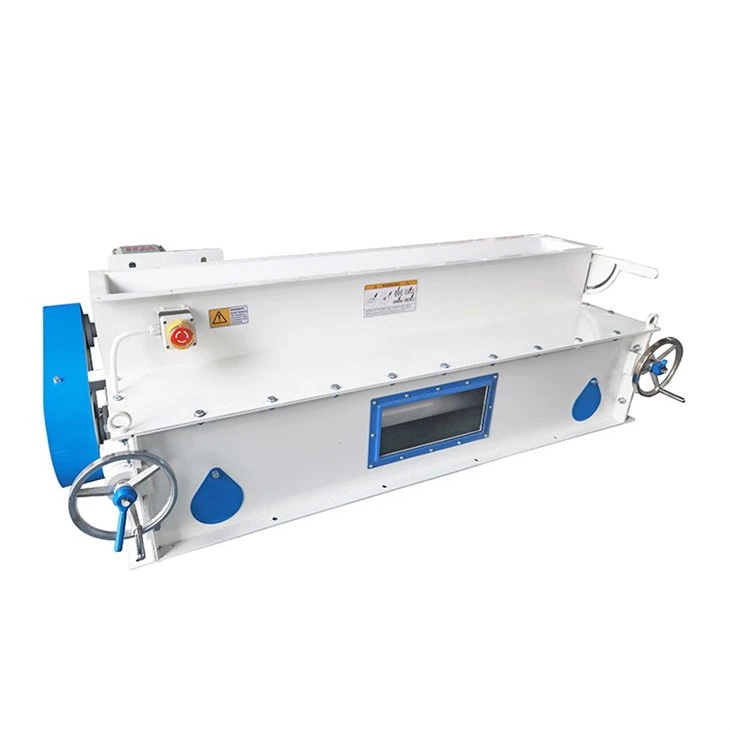

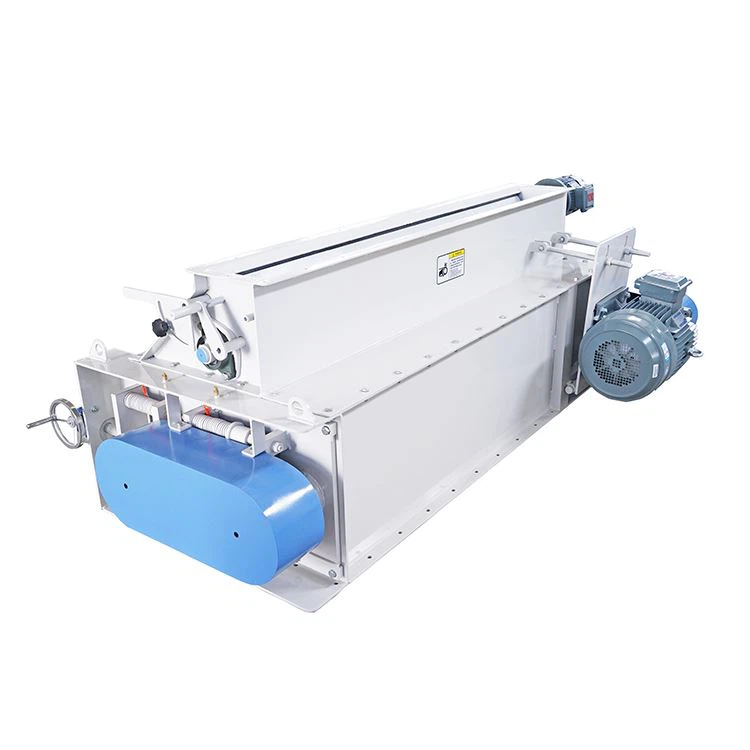

SSLG Cov Menyuam Noj Pellet Crumbler:
1. No series Pub Pellet Crumbler Tshuab yog cov cuab yeej tshwj xeeb los tsoo cov pellets loj rau cov pellets me. Nws yog qhov tsim nyog rau crush pellets ntawm ntau qhov loj rau 0.6-1.5mm (zoo hom) lossis 1-2.5mm (hom ib txwm).
2. Compact qauv pab txhawb kom uniformly txo particle loj. Kev hloov kho ntawm qhov kawg loj yog yooj yim.
3. Tau nruab nrog cov menyuam yaus khiav hauv qhov sib txawv ntawm qhov sib txawv tuaj yeem ua rau cov ntaub ntawv pellet raug nyem, txiav thiab rub ntawm ob lub yob. Uas ua zoo meej crushing nyhuv.
4. Qhov tshwj xeeb pub hopper thiab bypass ancillary cov cuab yeej ua lub luag haujlwm tsis yog hauv kev kho kom zoo xwb, tab sis kuj tseem qhia cov ntaub ntawv uas tsis tas yuav raug crushed rau bypass kwj, uas tuaj yeem kaw thaum lub bypass ntws los ntawm kev hloov mus los.
5. Nqaim V siv tsav kom paub tseeb tias kev sib kis tau zoo, tsis tshua muaj suab nrov, txhim khu kev qha khiav thiab ua haujlwm yooj yim.

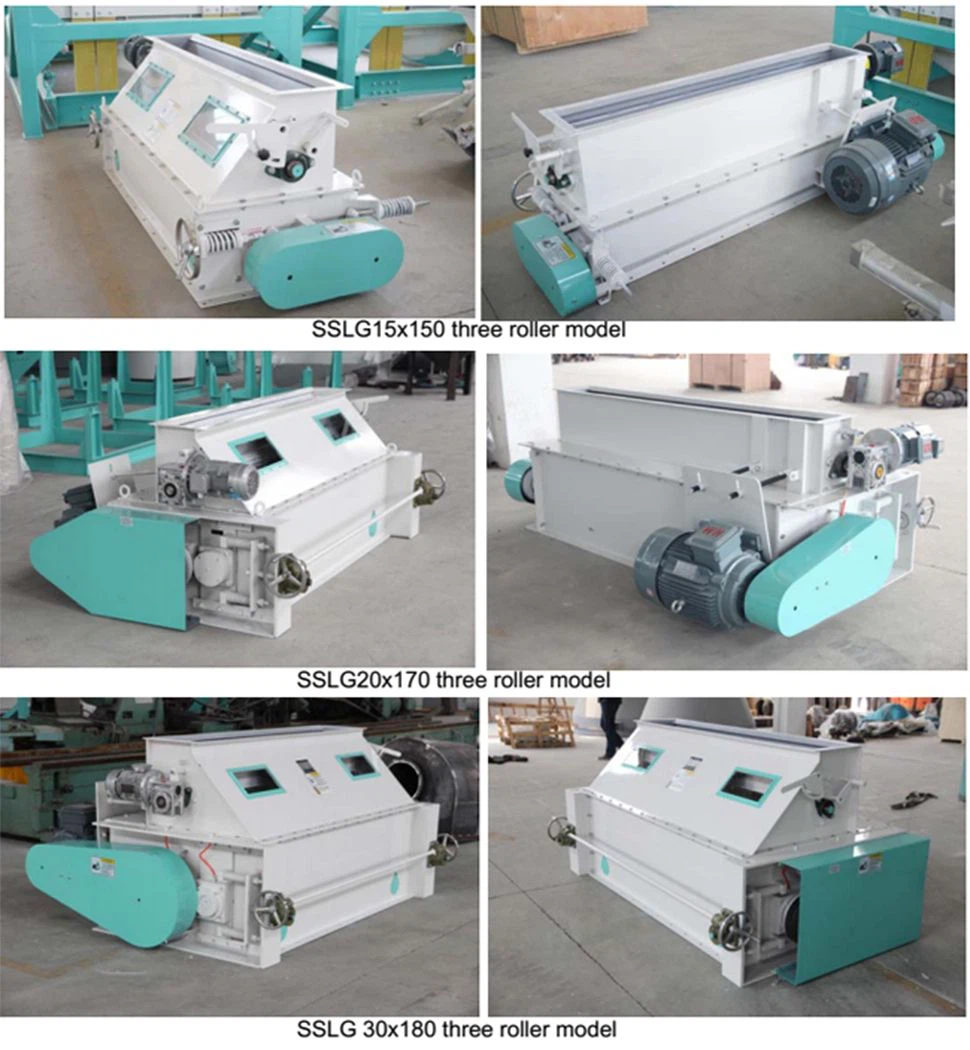

6. 20x170 qauv yog saws nrog tshwj xeeb rau cov menyuam ncua kev hloov kho mechanism, uas yog ib qho yooj yim thiab txhim khu kev qha.
Product Technical Parameters:
|
Cov menyuam specification (inch 'ntev |
Rotating ceev ntawm cov menyuam ceev (RPM) |
Rotating ceev ntawm cov menyuam qeeb (RPM) |
Cov zis (t / h) |
Lub zog (kw) |
|
15x80 |
725 |
475 |
2-4 |
4 |
|
15x100 |
725 |
475 |
3-6 |
5.5 |
|
15x150 |
725 |
475 |
5-10 |
11 |
|
20x170 |
725 |
475 |
8-12 |
15 |
|
30x180 |
725 |
475 |
12-16 |
22 |
Nco tseg: qhov tso zis saum toj no yog peb lub tshuab crumbler tso zis.
Technical nta ntawm Pellet Feed Crumbler:
1.Compact qauv, uniform crushing kev ua tau zoo, thiab yooj yim hloov ntawm qhov kawg particle loj.
2.Unique feeding hopper xyuas kom txawm tias pub mis, thiab lub ntim ntim tuaj yeem hloov kho.
3.Rollers khiav nyob rau hauv sib txawv ceev, cov pellets yog squeezed, txiav thiab torn ntawm lub rollers, thiaj li mus cuag lub zoo tagnrho crushing nyhuv.
4.Bypass ntaus ntawv tsim, cov ntaub ntawv uas tsis tas yuav crushed ntws mus bypass, thiab nws muaj peev xwm cia li kaw thaum lub bypass ntws los ntawm kev mus los.
5.Adopt nqaim V-siv tsav, du kis tau tus mob, tsis tshua muaj suab nrov, txhim khu kev qha thiab ua haujlwm yooj yim.
6.Equipped nrog flange soj ntsuam qhov, yooj yim rau kev khiav lag luam thiab tswj.
7.Adopt packing foob, ncua kev pab cuam lub neej ntawm cov kabmob, thiab tiv thaiv cov tshauv to.
Daim ntawv thov ntawm Pellet Feed Crumbler:
Feed Pellet Crumbler Tshuab yog cov cuab yeej tseem ceeb hauv kev pub pellet ntau lawm, uas yog mob siab rau crumble loj pub pellets rau hauv cov me me tsis tu ncua kom tau raws li qhov xav tau sib txawv ntawm cov tsiaj sib txawv hauv lub sijhawm loj hlob. Nws yog tsim rau crushing cov khoom noj pellets ntawm ntau qhov ntau thiab tsawg rau 0.6-1.5mm (zoo hniav hom) los yog 1-2.5mm (hom hniav). Kev ua haujlwm me me thiab kev tsim qauv zoo ntawm lub ntsiab tsav kom muaj kev ua haujlwm siab thiab zoo meej crushing nyhuv, txuag nyiaj ntau thiab hloov tau yooj yim kom tau raws li qhov sib txawv ntawm cov neeg siv khoom. Peb muaj ob leeg-cov menyuam thiab peb-cov menyuam hom pub pellet yob crushers rau koj xaiv.
